Low-voltage infrastructure / Field execution
Engineering Standards &Technical Library.
Architectural low voltage specifications, optical link loss budgets, pathway clearance matrices, and digital closeout documentation for enterprise network architects and construction leaders.
Discuss Your ProjectEngineering standards & technical library
ARCHITECTURAL SPECIFICATION REPOSITORY
Standardized Engineering Specifications.
Designed for enterprise network architects, general contractors, and MEP superintendents who demand documented rigor. Explore our physical layer standards, pathway clearance rules, and link testing criteria.

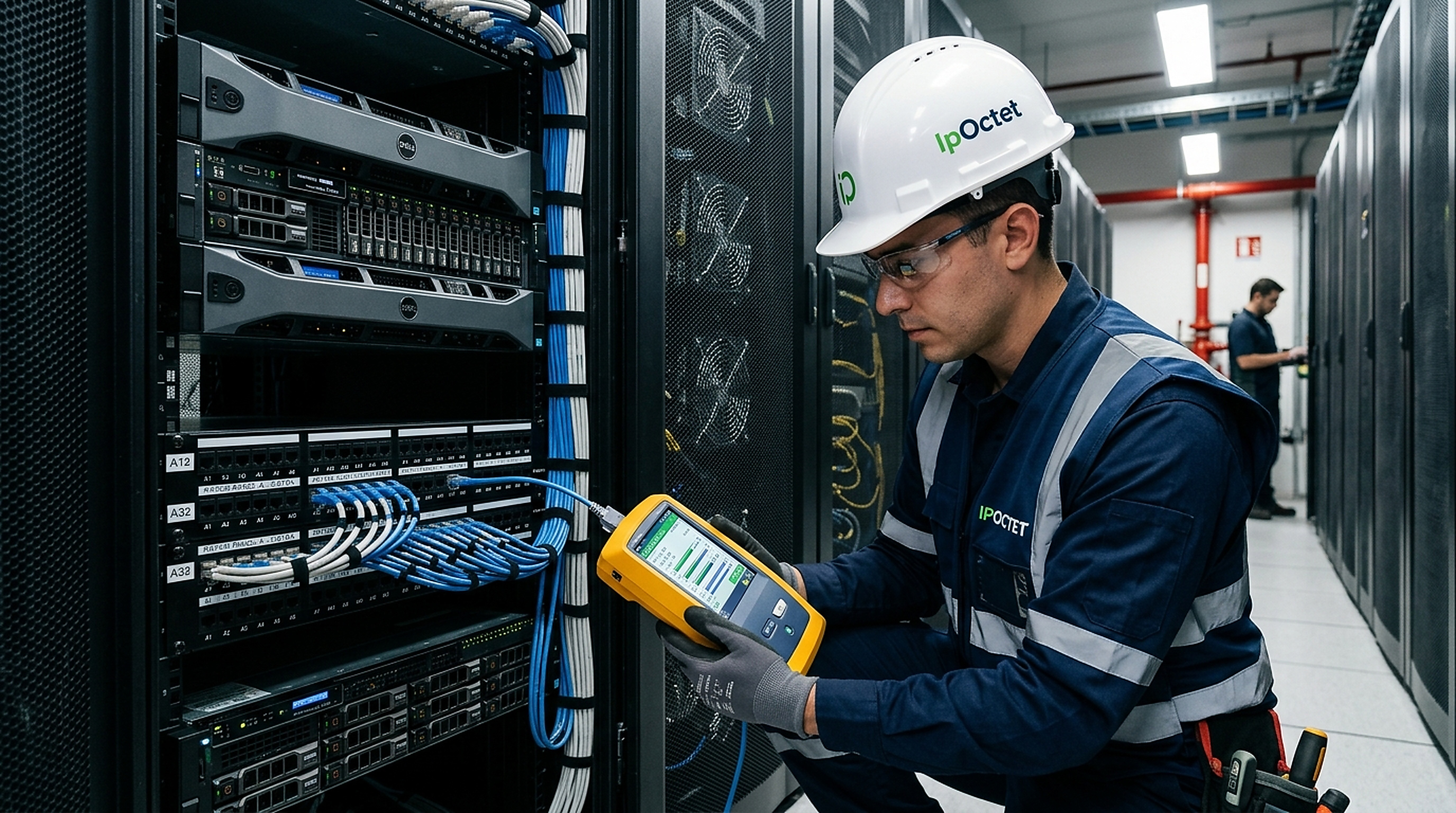

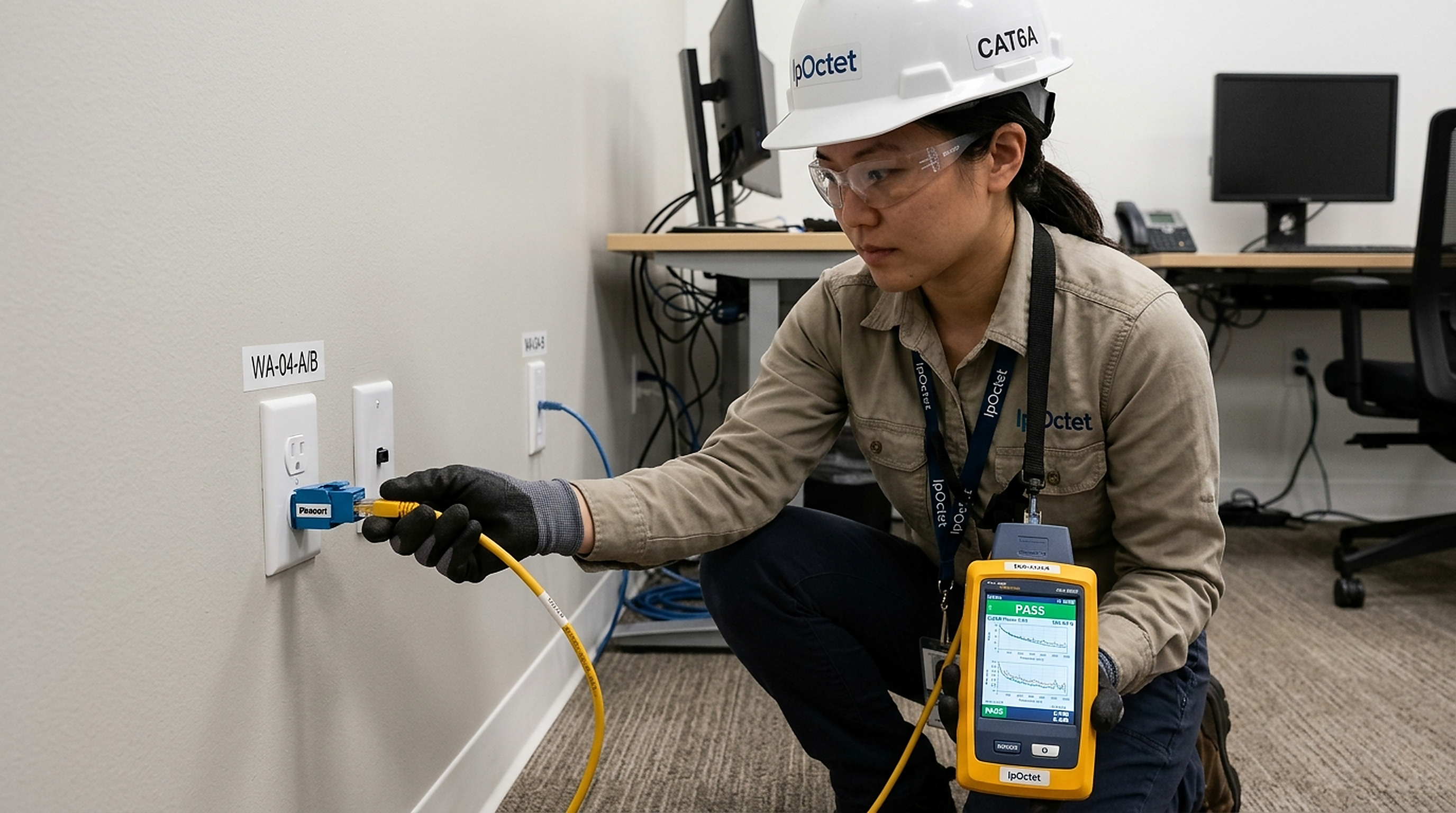

Copper Permanent Link & Attenuation Limits
SPEC-TIA-568.2DPermanent link limits, insertion loss thresholds, return loss margins, and high-frequency Alien Crosstalk (AXT) mitigation across high-density Cat6A 10G patch fields.

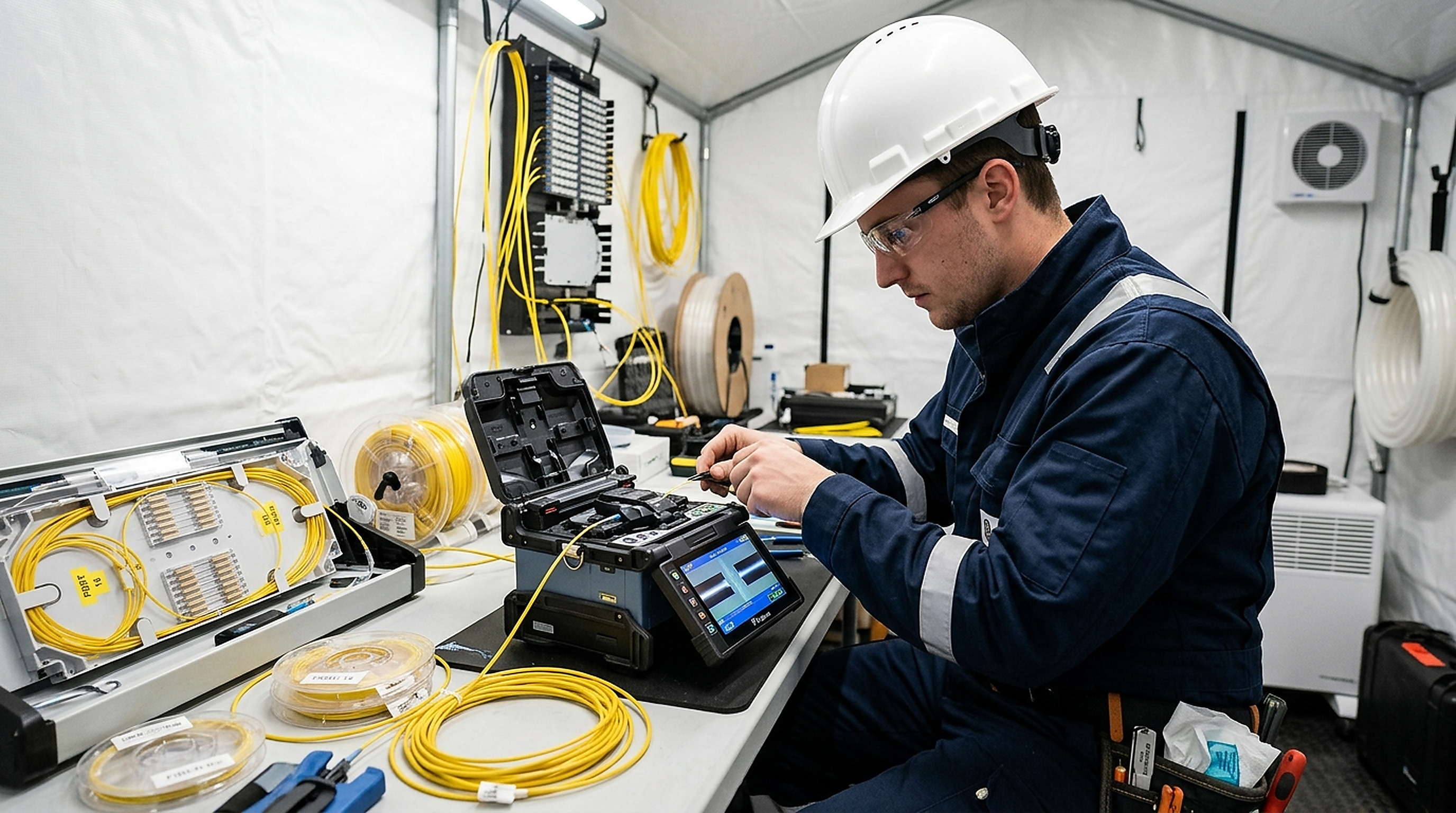

Single-Mode (OS2) & OM4 Optical Loss Budgets
SPEC-FIBER-LOSS-02Calculated link loss formulas (dB/km), connector insertion loss ceilings (<0.75 dB per mated pair), and core-alignment fusion splice tolerances (<0.02 dB) for optical backbones.

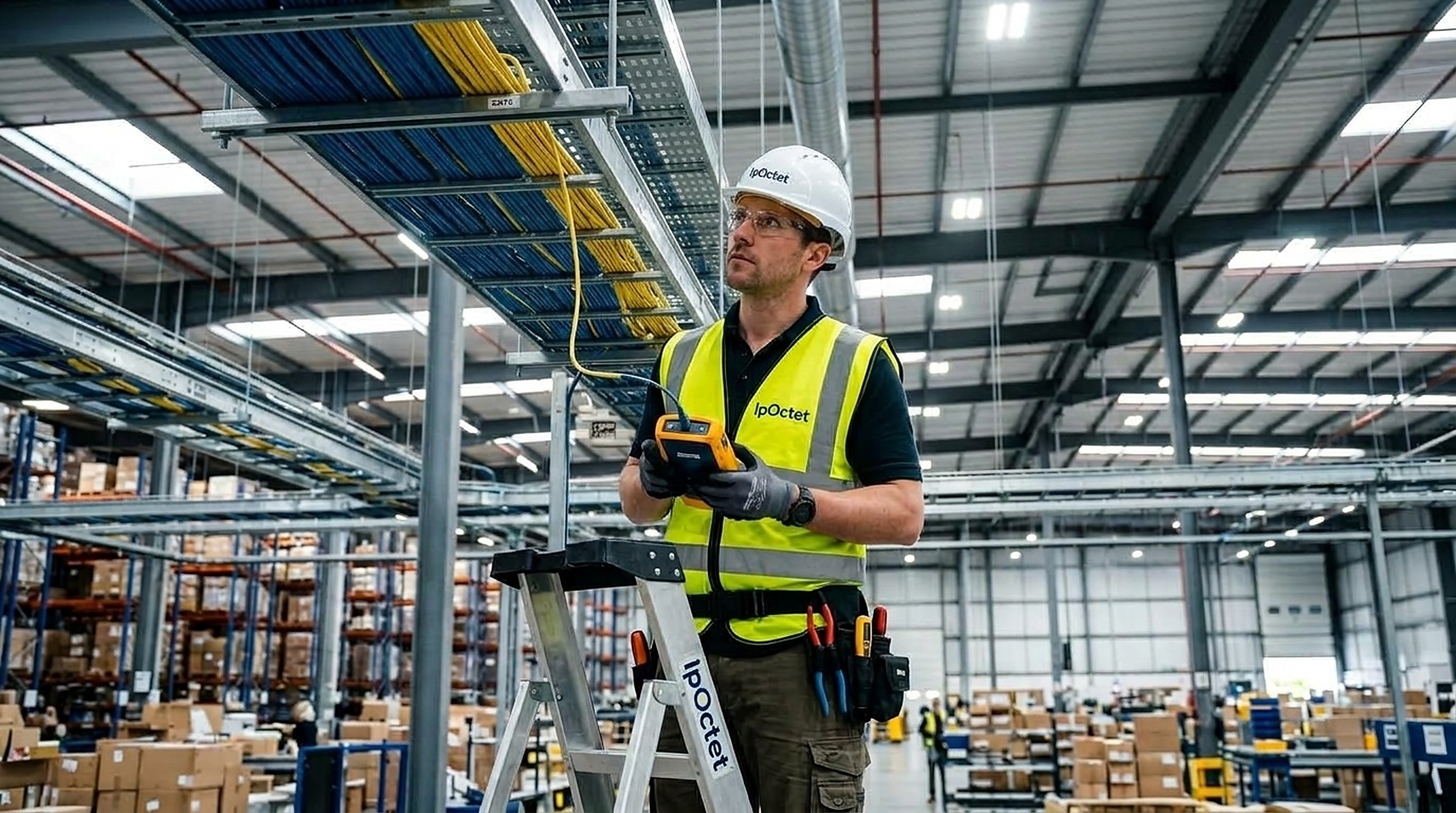

Wire Basket Tray Capacity & Pathway Fill Ratios
SPEC-PATHWAY-FILLMaximum 40% initial fill and 50% planned ultimate capacity in overhead wire basket pathways, J-hook support spacing every 4 to 5 feet, and bend radius waterfall drop limits.

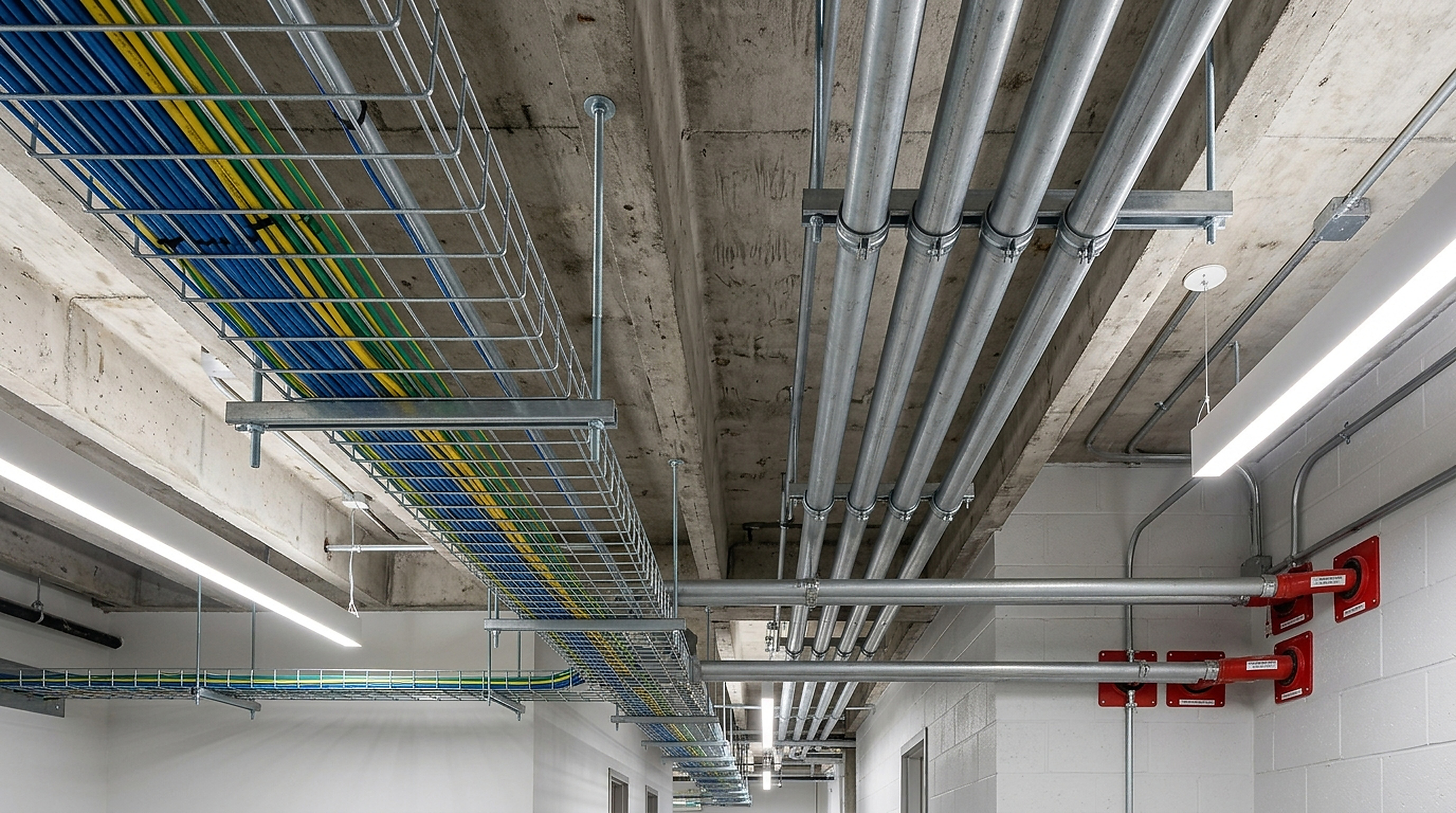

High-Voltage Isolation & EMI Clearances
SPEC-EMI-CLEARANCEStrict 12-inch physical isolation from 480V distribution conduit, 90-degree perpendicular crossings, and UL 1479 intumescent firestop sleeve requirements for firewall breaches.

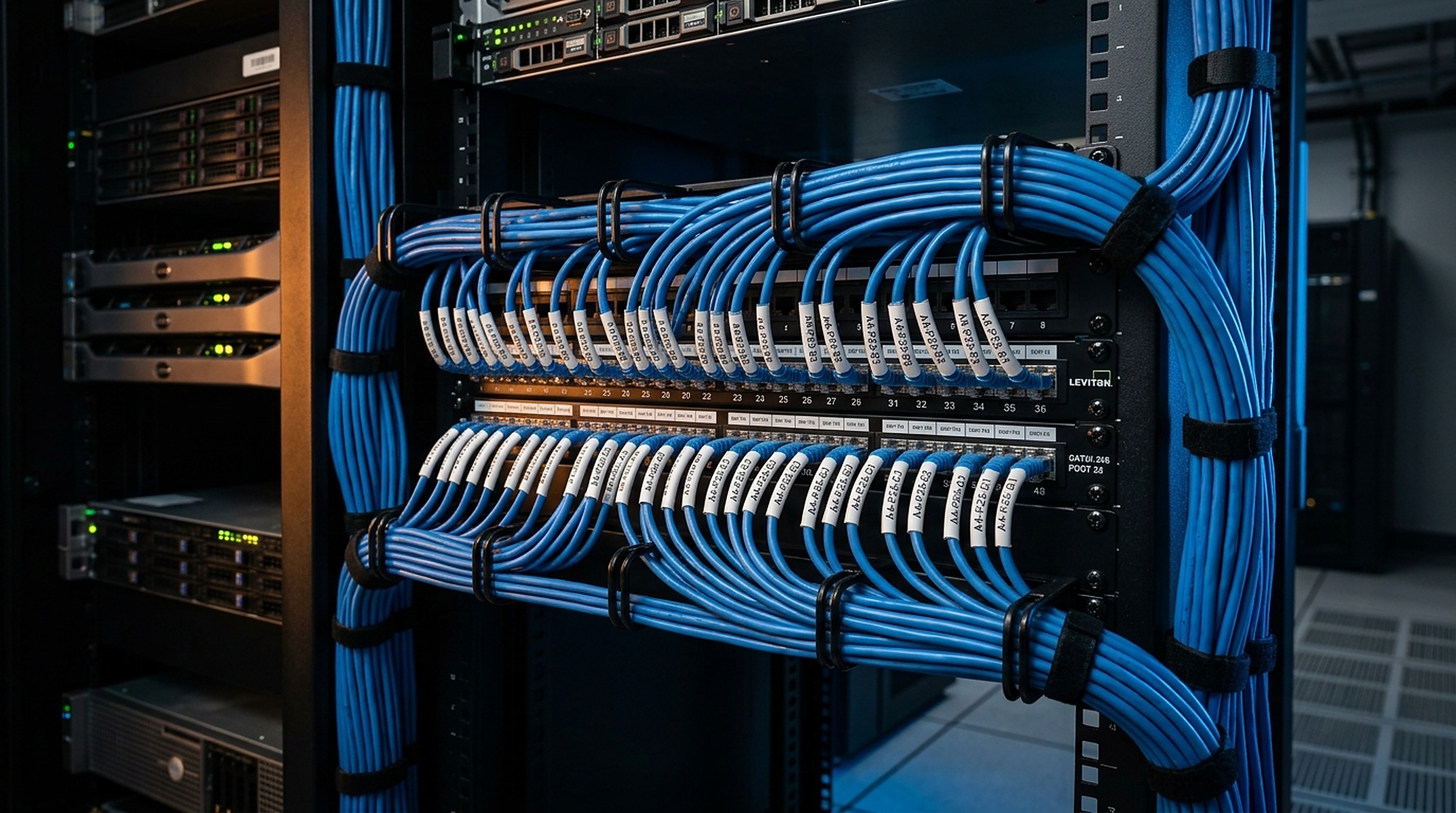

Thermal Polyolefin Labeling & Mapping Schema
SPEC-TIA-606-LABELMachine-printed thermal heat-shrink wrap labels at both ends of every cable run, faceplate, and patch panel port. Coordinated directly with CAD as-builts and Fluke test report IDs.

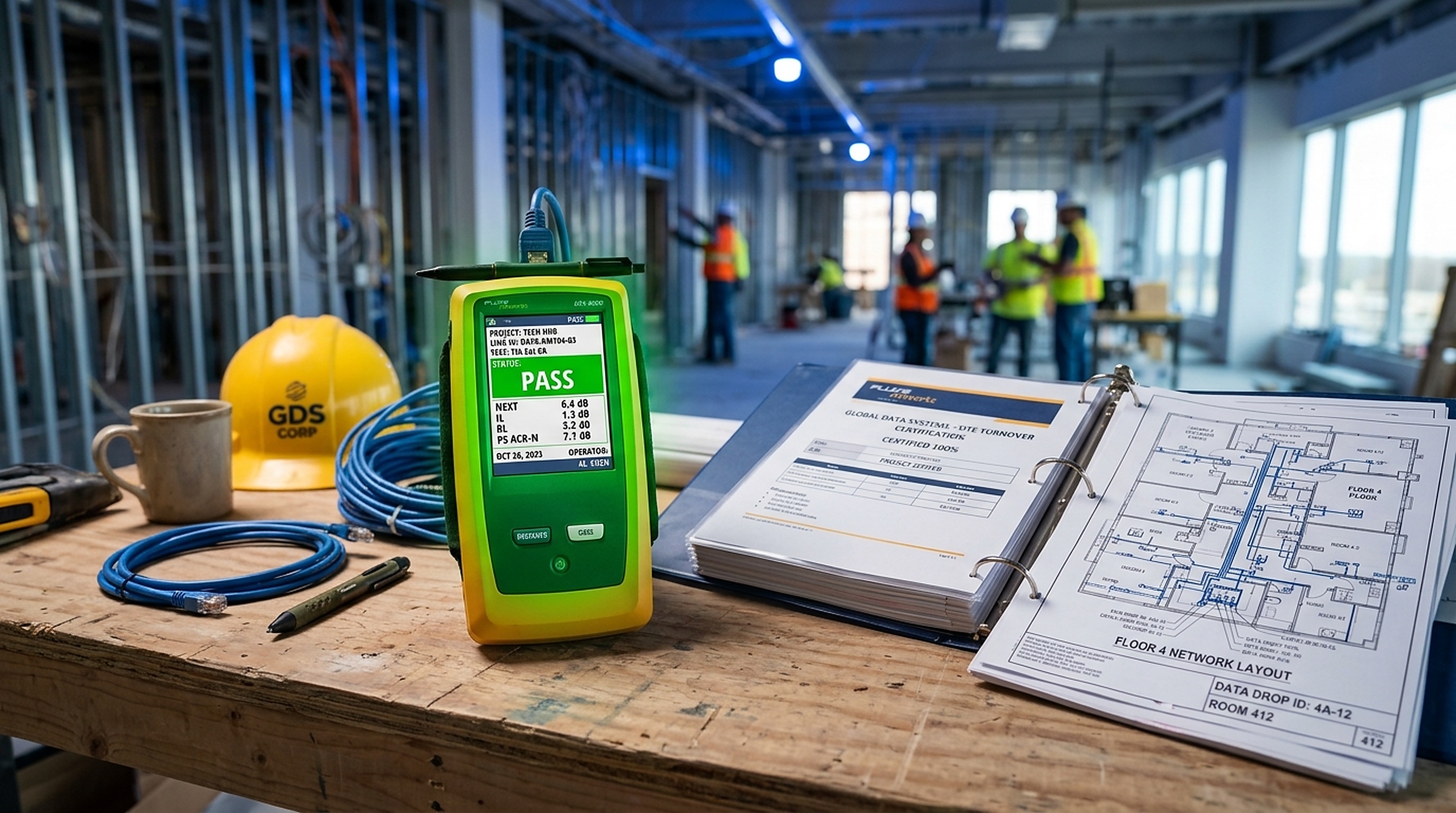

Calibrated Fluke Telemetry & Turnover Dossier
SPEC-DOC-CLOSEOUTStandardized PDF telemetry packages, Fluke LinkWare summary reports, high-resolution photographic proof of terminations, and redline CAD architectural prints delivered on Day-1.
ENGINEERING REFERENCE MATRIX
Interactive Field Engineering Matrices.
Consult core low-voltage physical tolerances, bandwidth maximums, optical loss ceilings, and pathway clearance rules used across our enterprise deployments.
COPPER PERFORMANCE MATRIX
Twisted-Pair Bandwidth & PoE Specifications
Bandwidth ceilings, 10G reach limitations, and 802.3bt Type 4 PoE++ power dissipation thermal guidelines.
- Cat6A Bandwidth
- 500 MHz
- 10G Reach
- 100m Full
- PoE++ Power
- 90 Watts
- Field execution
- Cat6A shielded (F/UTP or U/FTP) is specified for all high-density commercial horizontal drops. Enforces a maximum permanent link distance of 90 meters with a 10-meter patch cord allowance (100-meter total channel). Bundle sizing is limited to 24 cables to prevent heat buildup under continuous 90W PoE loads.
- Operational benefit
- Prevents bundle heat rise from de-rating cable performance, eliminates alien crosstalk in adjacent runs, and future-proofs active AP and camera deployments.
- Reference
- Cat5e vs Cat6 vs Cat6A Standards
DRAWING INTAKE & SUBMITTALS
Architectural Drawing Submittal Desk.
Submit architectural PDF prints, CAD drawings, or project scopes directly to our engineering desk. We provide preliminary drop schedule takeoffs, MEP trade clash detection, and submittal packages.
Architectural Print Takeoff & Sizing
Submit your architectural prints for drop count quantification, horizontal pathway routing analysis, and telecom room rack elevation sizing delivered with rapid 48-hour turnaround.
MEP Trade Clash & Feasibility Review
Early identification of low-voltage pathway conflicts with mechanical ductwork, plumbing risers, and high-voltage electrical conduits, preventing costly delays before mobilization.
Comprehensive Submittal Documentation
Complete submittal binders including manufacturer specification cut sheets, pathway load calculations, cable tray fill schedules, and firestop engineering judgment packages.
Operations desk · Active intake
Let’s Align on Your Scope.
Direct With Operations Leadership.
Multi-site rollouts, tight cutover schedules, and low voltage labor capacity are established through a focused project briefing directly with our field operations desk.
Call operations+1 (602) 362-8601Your next project starts here
What happens when you initiate contact:
Review < 4 Hours
Scope & Drawing Intake
Upload architectural plans, conduit schedules, or bills of materials. Our engineering desk verifies pathways, drops, and cutover windows.
Direct Leadership Desk
Operations Alignment
A focused 15-minute alignment with Field Operations leadership to confirm crew sizing, site readiness, and milestone timelines.
Turnover Guaranteed
Mobilization & Digital Closeout
Dedicated Lead Technician deployed to site. Full digital test results, as-built redlines, and visual proof delivered before final sign-off.
